Turnkey PCB Assembly Services: Precision Engineering & Full-Turnkey PCB Assembly
From component souring to final testing—your seamless partner for complex electronics with certified quality standards.
PCBArise provides turnkey PCB assembly services from component sourcing to finished product assembly. Our capabilities include SMT assembly, THT assembly, BGA assembly, fine-pitch assembly, mixed-technology assembly, AOI inspection, X-Ray inspection, ICT, FCT, functional testing, and box build assembly.
SMT, THT, BGA and Mixed-Technology Assembly
Stop juggling multiple vendors. We consolidate the entire electronics manufacturing process under one roof, providing a seamless experience from your initial Gerber files to a fully tested, market-ready product.
● SMT (Surface-Mount Technology) Assembly: Our core competency. We utilize high-speed, high-precision pick-and-place machines capable of handling the most complex boards, from simple consumer electronics to intricate multi-layer industrial controls. We support ultra-fine-pitch components down to 01005 and 0.3mm pitch BGAs.
● Through-Hole (DIP) Assembly: For components requiring robust mechanical strength, we offer both manual insertion and automated selective wave soldering. This ensures reliable through-hole assembly without exposing sensitive SMT components to excessive thermal stress.
● BGA & µBGA Assembly: We specialize in complex Ball Grid Array (BGA) and Micro-BGA assembly. Our process includes precise X-Ray inspection to verify solder joint integrity, ensuring void-free connections for high-density ICs.
● Flexible PCB Assembly: We possess the specialized fixturing and process controls required to assemble Flexible Printed Circuits (FPC) without damaging the substrate. This includes careful handling during solder paste printing and reflow to maintain dimensional stability.
● Rigid-Flex PCB Assembly: Combining the durability of rigid boards with the versatility of flex circuits, we manage the complex assembly of Rigid-Flex PCBs. We ensure precise alignment and stress relief during the soldering process to maintain the integrity of the transition zones.
● Consigned PCB Assembly (Labor-Only): You provide the components, and we provide the manufacturing expertise. This is ideal for projects where you have established supply chains or specialized parts. We handle the kitting, storage, and precise assembly of your materials.
● Turnkey Assembly: The ultimate hands-off solution. We take your design files and a Bill of Materials (BOM), then manage everything—component sourcing, PCB fabrication, assembly, and final testing—delivering a finished product ready for integration. This minimizes your administrative overhead and supply chain risks.
● Prototype PCB Assembly: Speed is critical for R&D. We offer rapid turnaround times for prototype assembly, allowing you to verify designs and iterate quickly. Our “one-piece” capability ensures you can test your hardware without waiting for mass production slots.
● Mass Production Assembly: Whether you need a single board for R&D verification or thousands of units for market launch, our scalable production lines adapt to your volume and timeline. We maintain strict quality consistency across high-volume runs using Statistical Process Control (SPC).
● 컴포넌트 소싱: Our global supply chain network ensures access to genuine, high-quality parts from authorized distributors. We mitigate the risk of shortages or counterfeit components through rigorous Incoming Quality Control (IQC).
● IC Programming & Firmware Flashing: We can program Flash, MCU, FPGA, and EEPROM chips directly on the assembly line. This automated process ensures accurate firmware loading and reduces your post-production handling time.
● Conformal Coating: We apply protective coatings (Acrylic, Silicone, UV Curable, or Parylene) to shield your PCBs from moisture, dust, chemicals, and corrosion. This is essential for automotive, medical, and industrial electronics operating in harsh environments.
● 박스 빌드 어셈블리: We go beyond the bare board. Our team integrates your PCBA into enclosures, installs displays, connects wiring harnesses, and performs final system assembly, delivering a complete unit ready for shipment.
● Cable & Harness Assembly: We manufacture custom cable assemblies and wire harnesses to connect your electronic components. Our processes ensure correct crimping, continuity, and strain relief, matching the high quality of your PCBs.

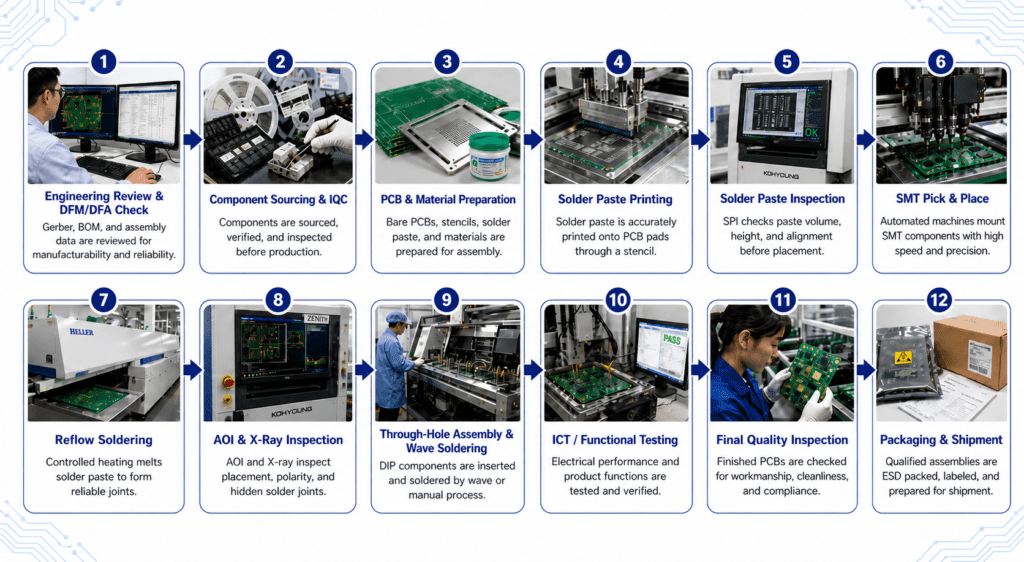

The Complete PCB Assembly Manufacturing Process:
PCB Assembly Inspection and Testing
Transforming a bare PCB into a fully functional electronic assembly requires precision, rigorous quality control, and advanced automation. Below is a detailed, step-by-step guide to our PCB Assembly process, designed to ensure maximum reliability and performance.
Turnkey PCB Assembly Capabilities
We are equipped to handle projects of varying complexity, from compact wearables to large-format industrial controllers.
| Category | Parameter | Capability |
| SMT Assembly | Component Size Range | 01005 (0.4mm × 0.2mm) to 150mm × 100mm × 30mm |
| Min Component Size | 01005 (0.4mm × 0.2mm) (also supports 0603, 0402, 0201) | |
| BGA Pitch (min) | 0.25mm | |
| QFP/QFN Pitch (min) | 0.15mm (space) / 0.3mm (width) | |
| Placement Accuracy (X/Y) | ±0.025mm (±25μm) | |
| Placement Accuracy (θ) | ±0.2° | |
| Max BGA Component Size | 70mm × 74mm | |
| Solder Paste Type | Lead-free (SAC305, SAC105),Leaded (Sn63/Pb37),High-Reliability (Sn62/Pb36/Ag2) | |
| Reflow Atmosphere | Air / Nitrogen (N₂) with oxygen control down to 500 ppm | |
| Through-Hole (THT) Assembly | Component Types | Radial, Axial, Connectors, Transformers, Heatsinks |
| Max Component Height | 120mm | |
| Soldering Methods | Wave Soldering, Selective Soldering, Hand Soldering | |
| PCB Assembly Support | PCB Types | Rigid (FR-4, High-Tg, Halogen-Free, Rogers, PTFE), Metal Core (Aluminum, Copper), Flexible (FPC), Rigid-Flex |
| PCB Thickness Range | 0.3mm – 10.0mm | |
| Max PCB Assembly Size | 400mm × 1200mm (min 50mm × 50mm) | |
| Warpage Control | ≤ 0.5% for SMT (IPC-650 compliant) | |
| Testing & Inspection | Automated Optical Inspection (AOI) | 3D AOI – False positive rate ≤ 0.1% |
| SPI (Solder Paste Inspection) | 3D SPI – Printing accuracy ±25μm | |
| X-Ray Inspection | 2D/3D AXI – BGA void detection ratio < 10% | |
| In-Circuit Testing (ICT) | Bed-of-nails / Flying Probe – Netlist check 100% | |
| Functional Testing (FCT) | Custom test fixture – Application-level validation | |
| Burn-In / Aging Test | Optional (24h/48h/72h) – for high-reliability applications | |
| Boundary Scan / JTAG | Available for complex digital assemblies | |
| Quality & Compliance | IPC Acceptance Standard | IPC-A-610 Class 3 (Class 2 standard; Class 3 available) |
| Traceability | Full traceability via integrated MES system (component-level to panel-level) | |
| Production Capacity | SMT Production Capacity | 700+ million points/month |
Lead Times by Product Complexity & Quantity
We understand that time-to-market is critical. Our quick-turn services are designed to accelerate your product launch.
| Service Type | Standard Lead Time | Expedited Options |
| Prototype Assembly | 3-5 Days | 24-48 Hours (Rush Service) |
| Small Batch (Low Vol) | 5-7 Days | 3-4 Days |
| Mass Production | 10-15 Days | Negotiable based on BOM availability |
Required Files for BOM Review and Assembly
To ensure a smooth manufacturing and assembly process, please prepare and submit the following complete files.
| File Name | Description & Requirements |
| 1. Gerber Files | Format: .zip or .rar Includes: Fabrication drawing, copper, solder mask, silkscreen, board outline, drill holes, and fiducials. |
| 2. Bill of Materials (BOM lists) | Format: Excel (.xls) or CSV Must Include: Reference Designators, Part Number, Description, Package Type, Manufacturer Name & MPN, Placement Side (Top/Bottom), and consignment status. |
| 3. Pick & Place File | Also Known As: Centroid or XY Data Format: .csv, .txt, or .xls Must Include: Reference, X/Y coordinates, Rotation angle, and Side (Top/Bottom). |
| 4. NC Drill File | Purpose: Indicates hole positions and diameters for through-hole and non-plated holes. |
| 5. Solder Paste Layer | Purpose: Defines stencil openings for solder paste printing. Note: Automatically generated if PCBArise handles PCB fabrication. |
| 6. Special Instructions | Details: Any specific requirements regarding polarized parts, BGA orientation, testing, conformal coating, or special handling. |
| 7. Consigned Parts List | Condition: Only if applicable (for partial or full consignment orders). Must Include: Part number, quantity, and purpose. |
Get a Turnkey PCB Assembly Quote
From prototypes to volume production, PCBArise provides reliable turnkey PCB assembly, component sourcing, inspection, testing, and final delivery support. Upload your Gerber, BOM, and assembly files to get a fast PCBA quotation with engineering feedback.
● BOM review and component sourcing support
● DFM / DFA feedback before assembly
● SMT, THT, BGA, and mixed-technology assembly support
● Prototype, small-batch, and volume production options
● NDA available upon request
